VClock is a replacement for the old "Rugby" clocks (the signals for which have moved from Rugby to Cumbria, so are unavailable to many sites in the south of England), and the lights panel that was traditionally found on the wall of a radio studio. It's a software application that can be controlled by external devices (such as GPIs, serial or IP data, http posts and snmp traps).

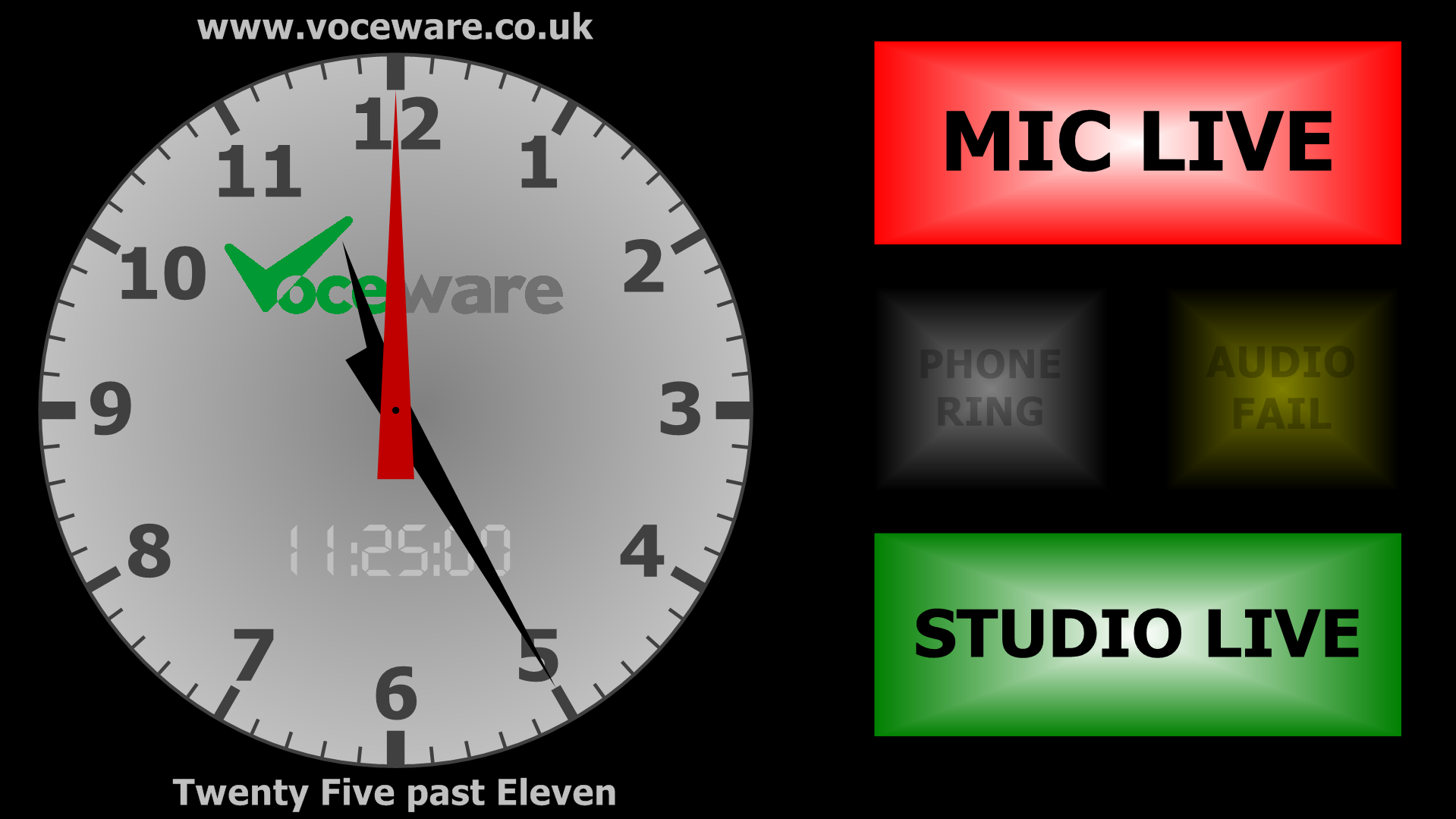

The basic clock can tell the time in analogue and digital formats, tell you the "English" way to say it (other languages are available or you can create your own), and backtime to several junctions in the hour. It can have your station logo on the clock, and each lamp can also have an image rather than a caption. It has up to 32 lamps which are completely configurable and can be turned on / off or made to flash when external triggers (such as a "mic live" signal from a mixing console or a phone call) tell it to.

VClock also has an embedded web browser, which allows you to show any content that you like on VClock, simply by creating a webpage.

The intelligent scripting language allows you to change the colours/states of the lamps, clock and background at startup, and can be made to completely change all settings upon reception of a trigger.

Don't miss our other related products, AudionicsGateway, VMeters and VScroll, which are a perfect addition to VClock (and equally work very well on their own!).

VClock is available as a free download which is fully functional apart from the inability to change the caption / add an image, and use of the external interfaces (GPI, serial, IP) to control the on-screen lamps is limited to only 10 commands before the clock needs to be restarted. An "unlicenced" message appears on the face of the free version.

Scroll down for purchasing information, or download the app now for a free trial with the link top right.

Example Layouts

Click on an image to enlarge it

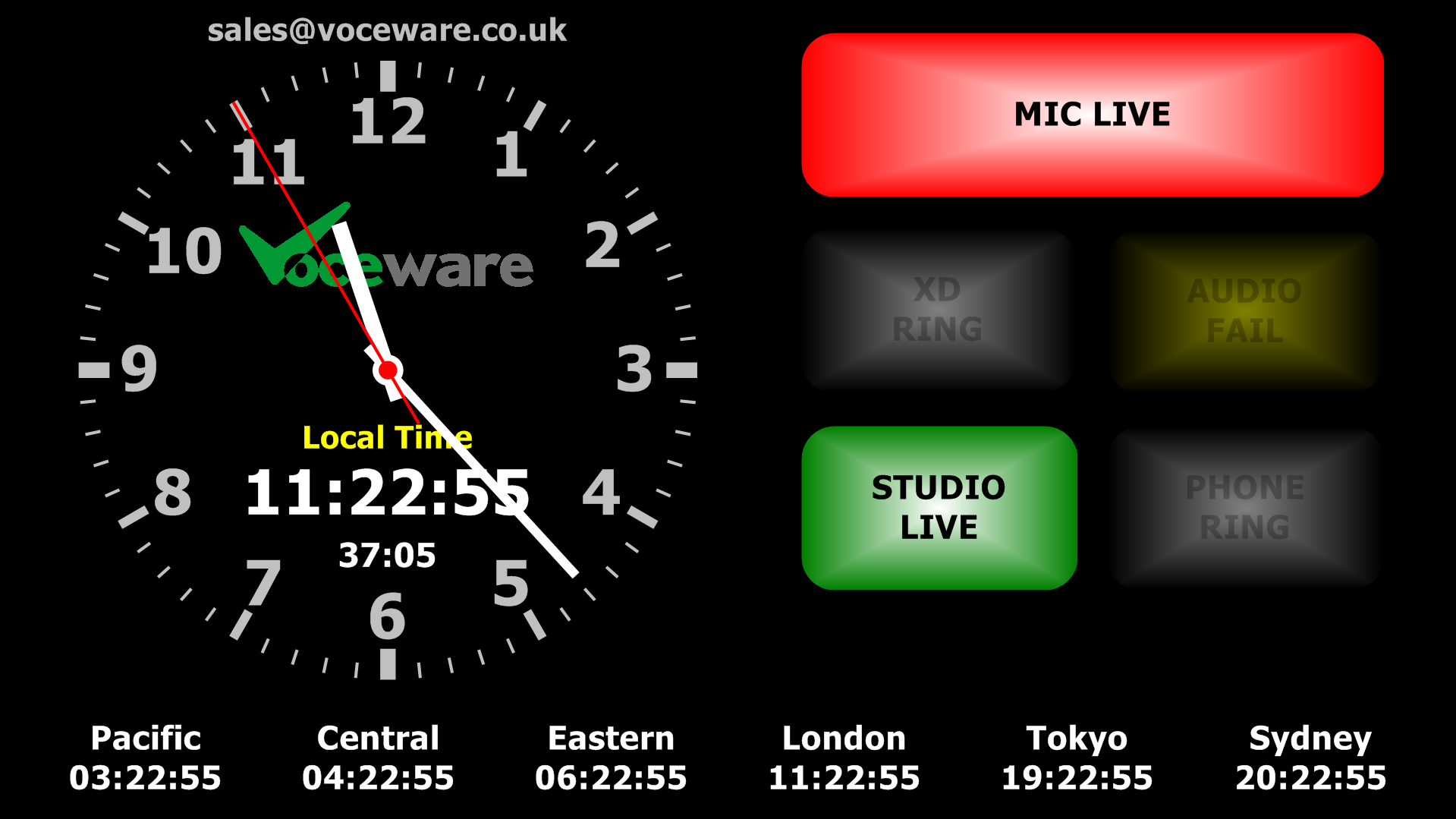

Different Timezones

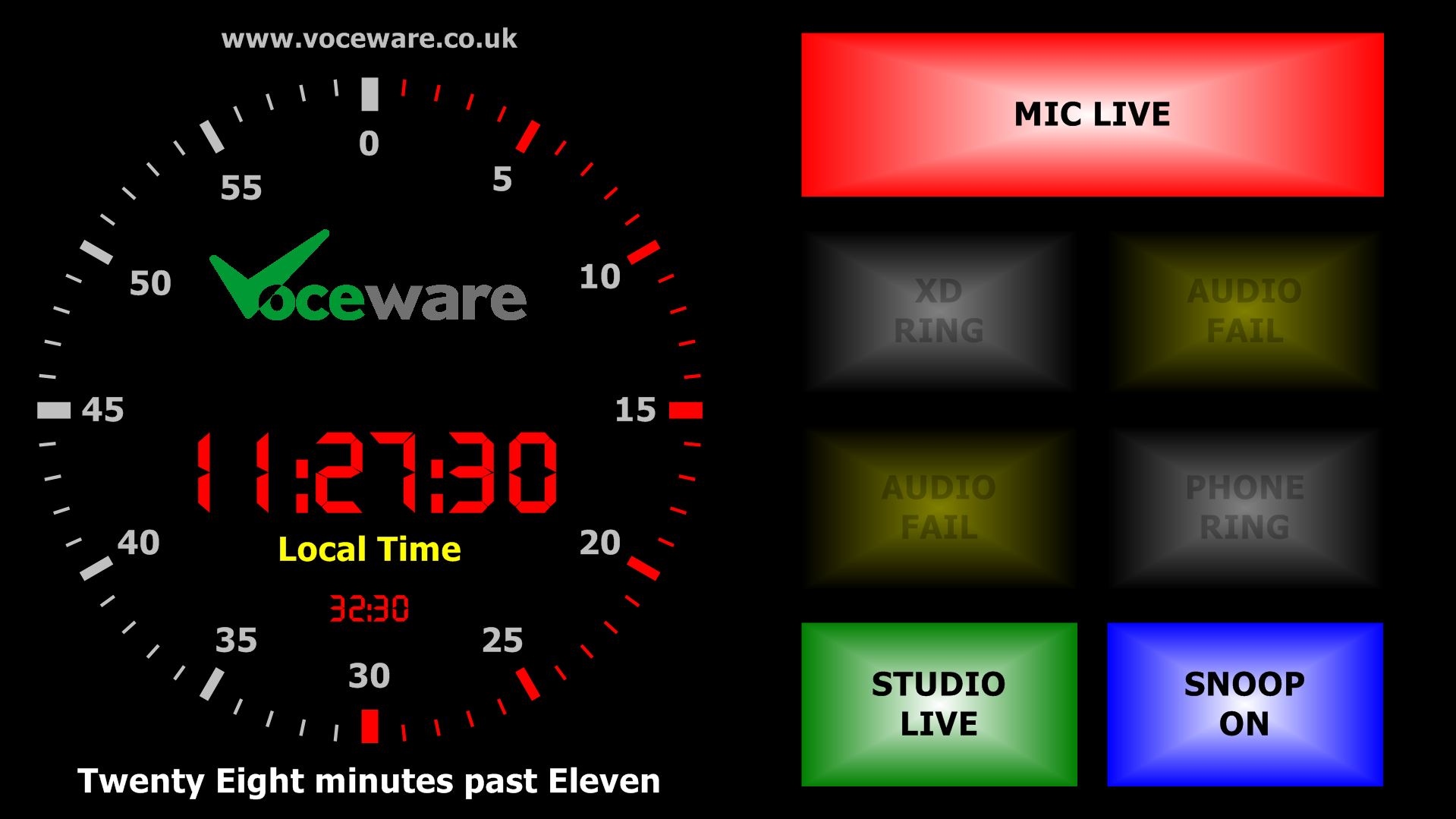

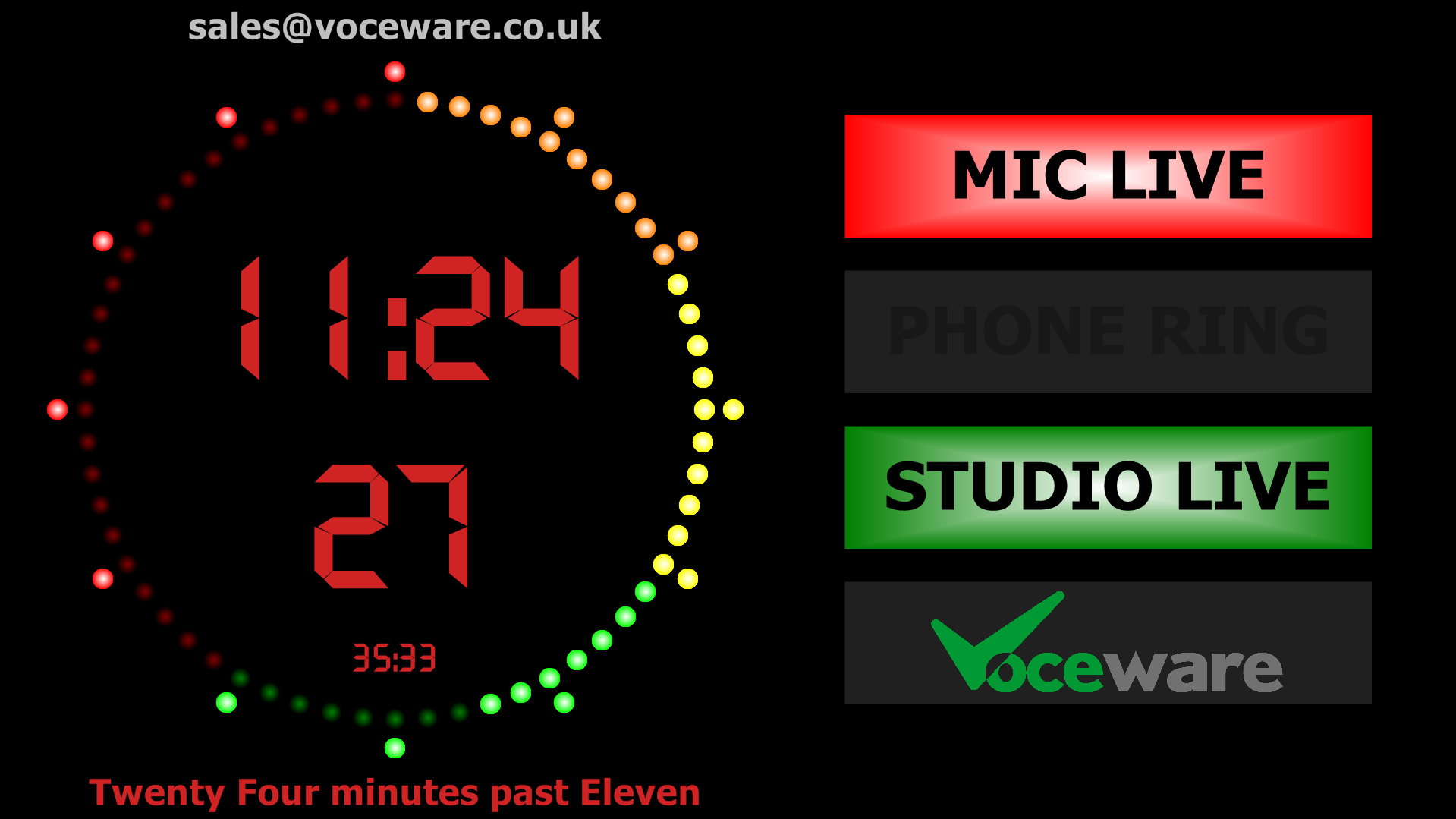

Large Digital Clock

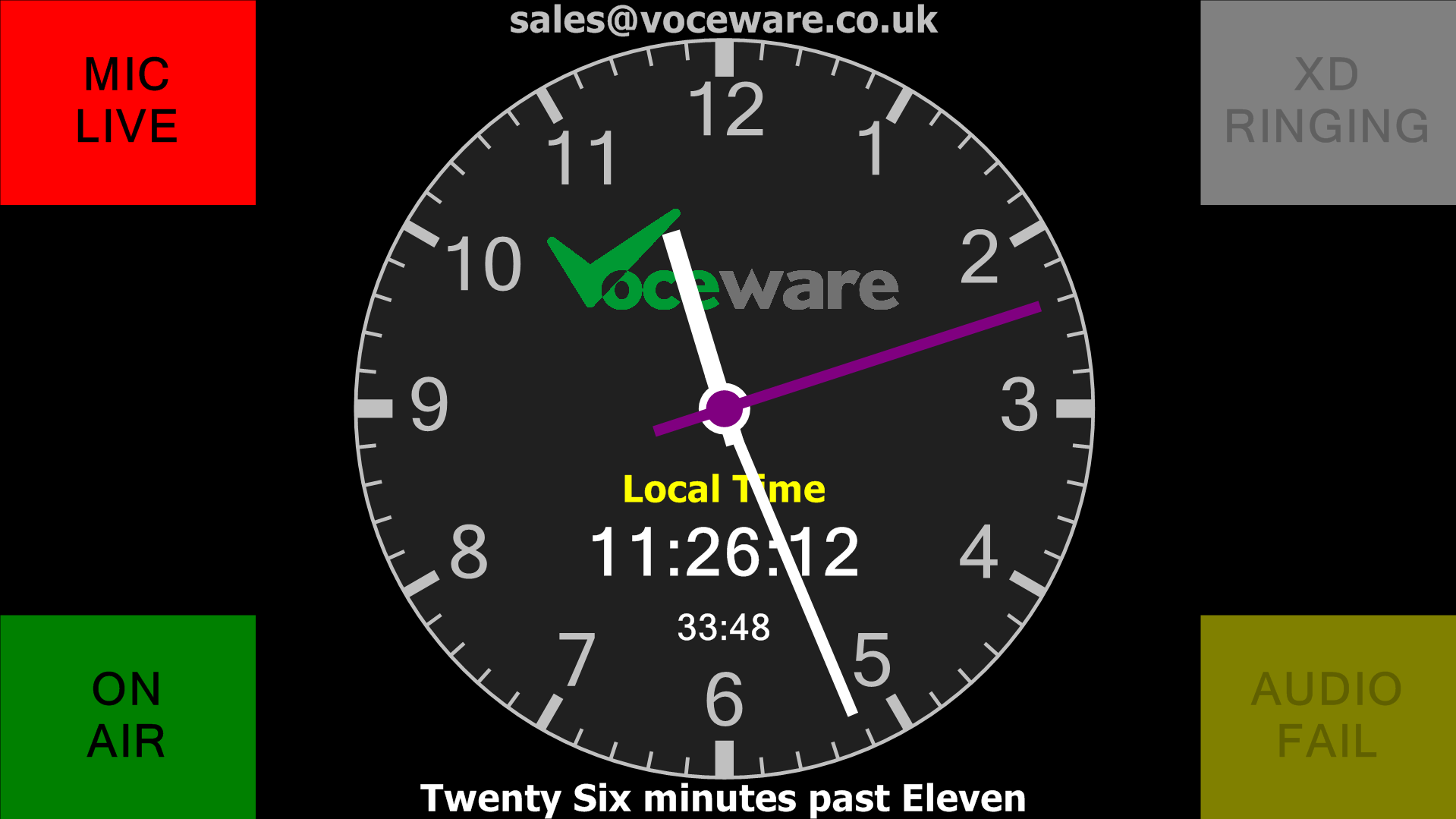

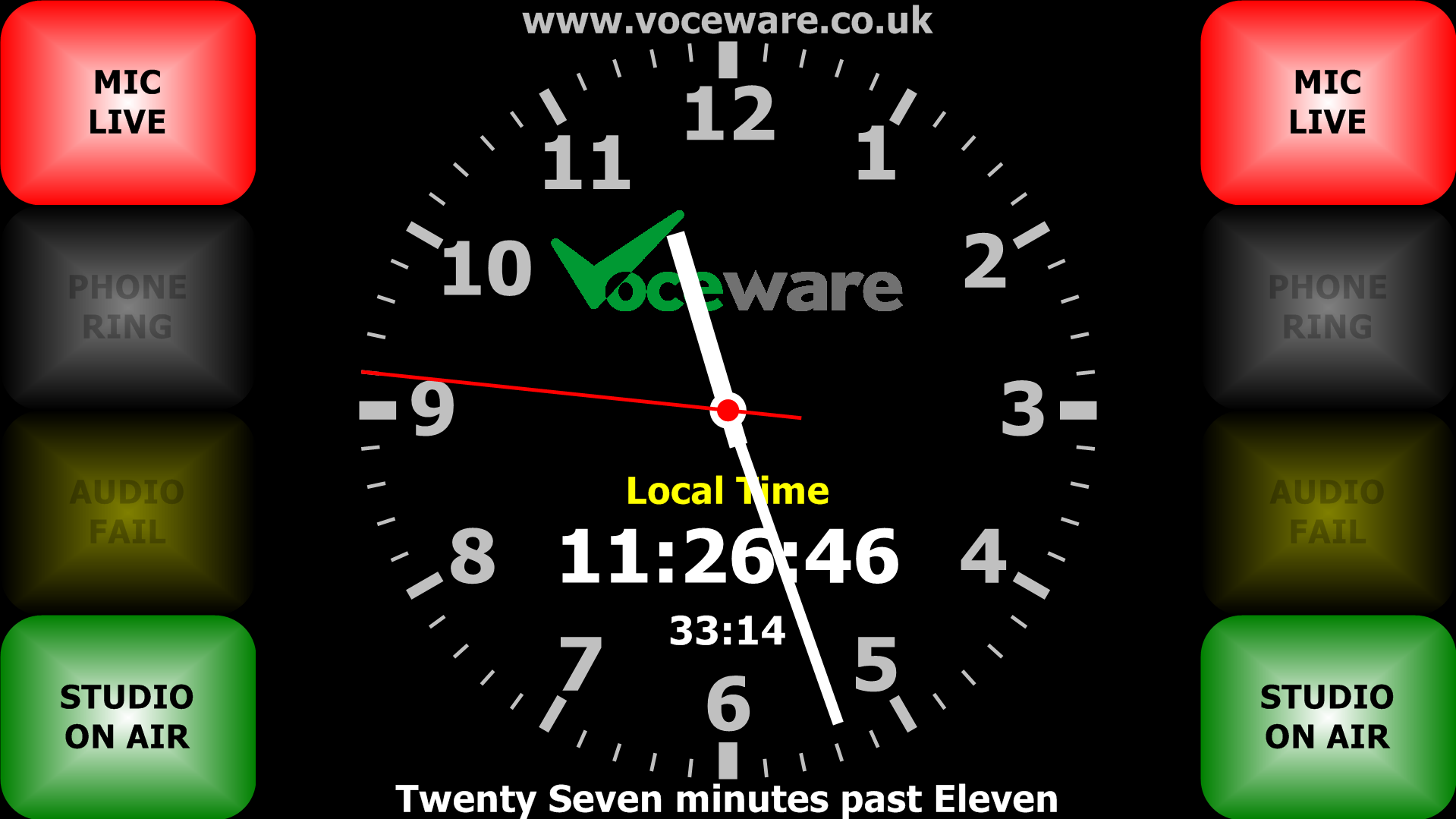

Different Hand Styles

Smaller Digital Clock

Flatter Lamp Style

Rounded Lamp Style

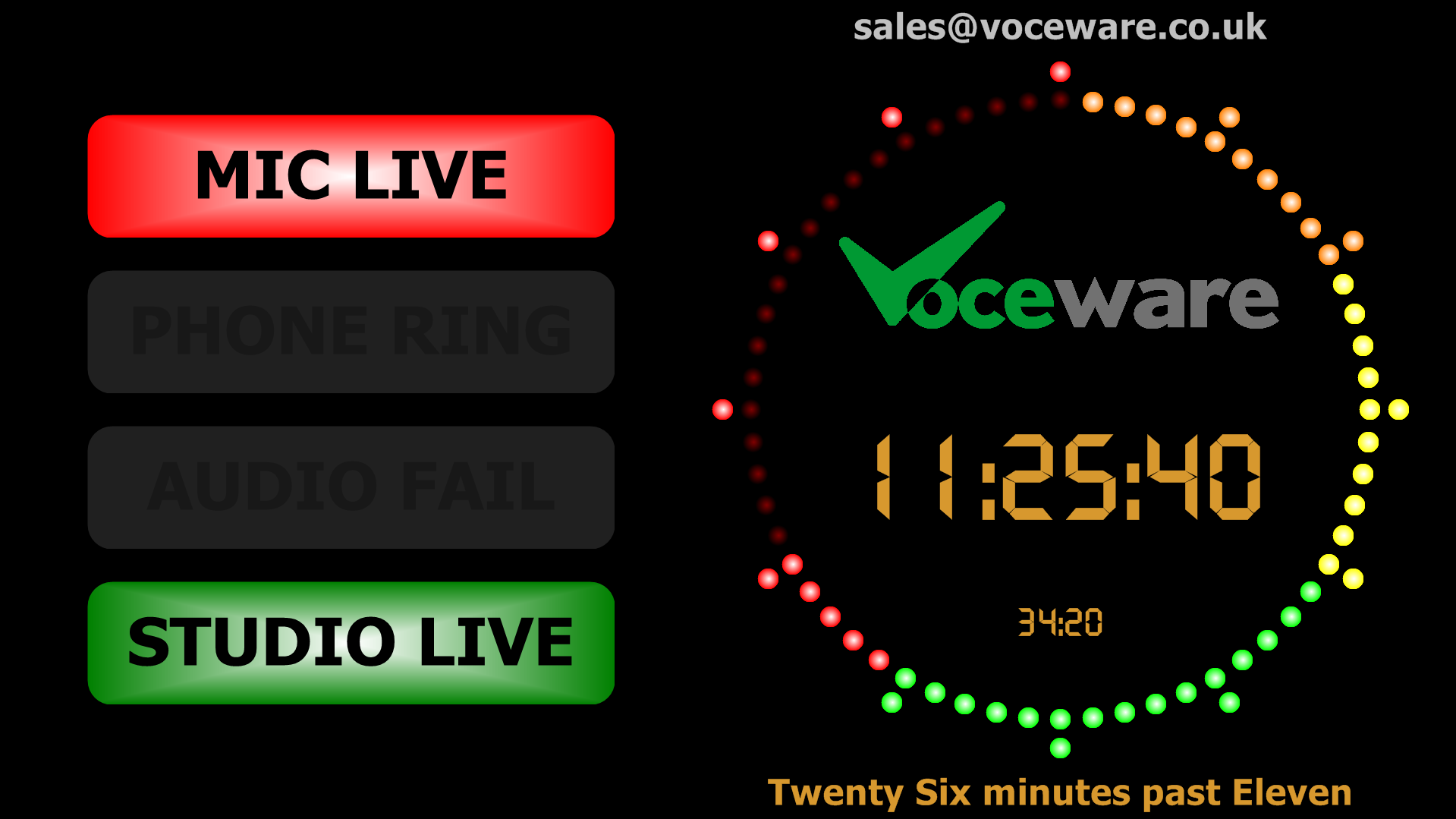

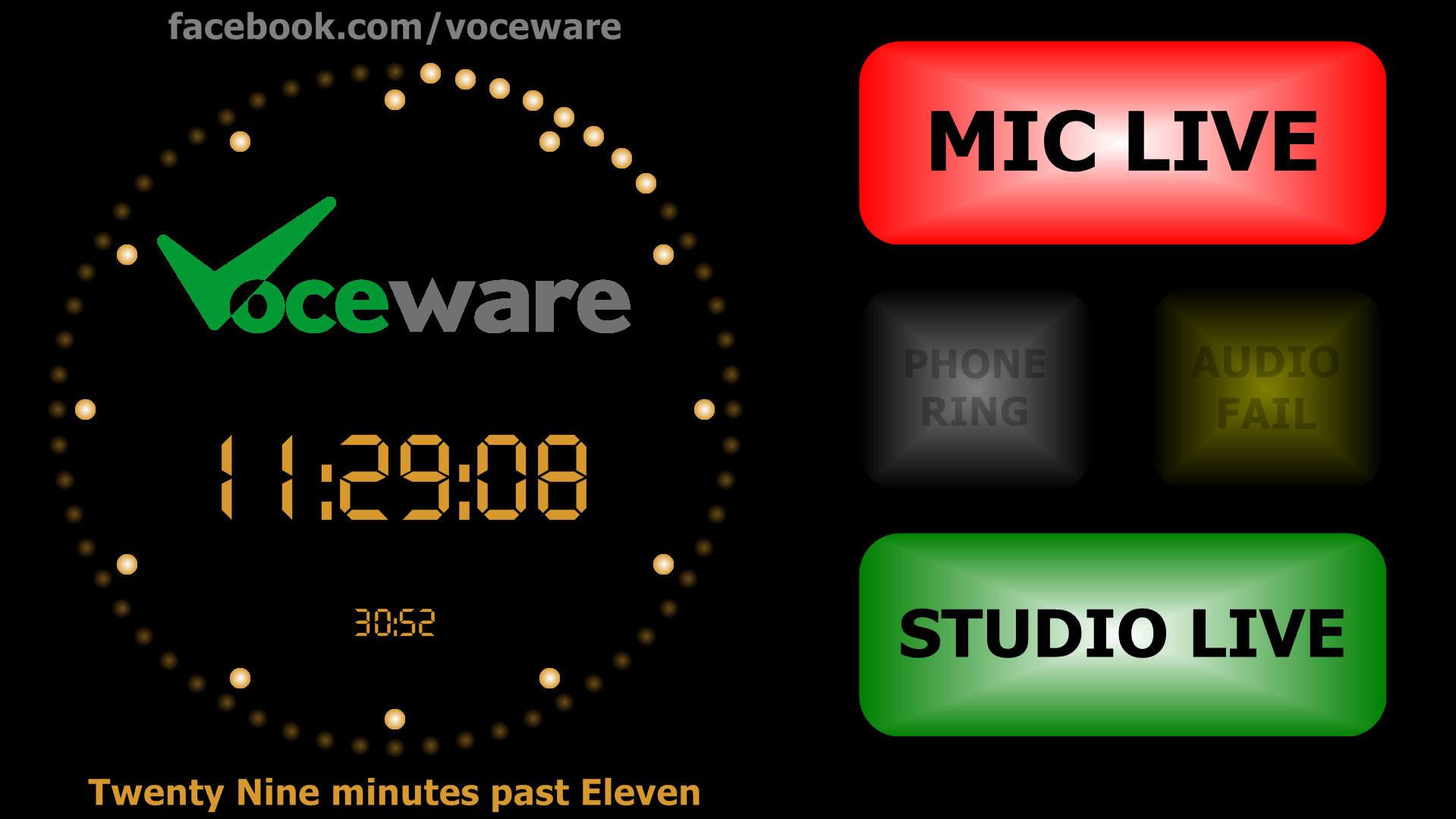

Coloured Ticks for Seconds

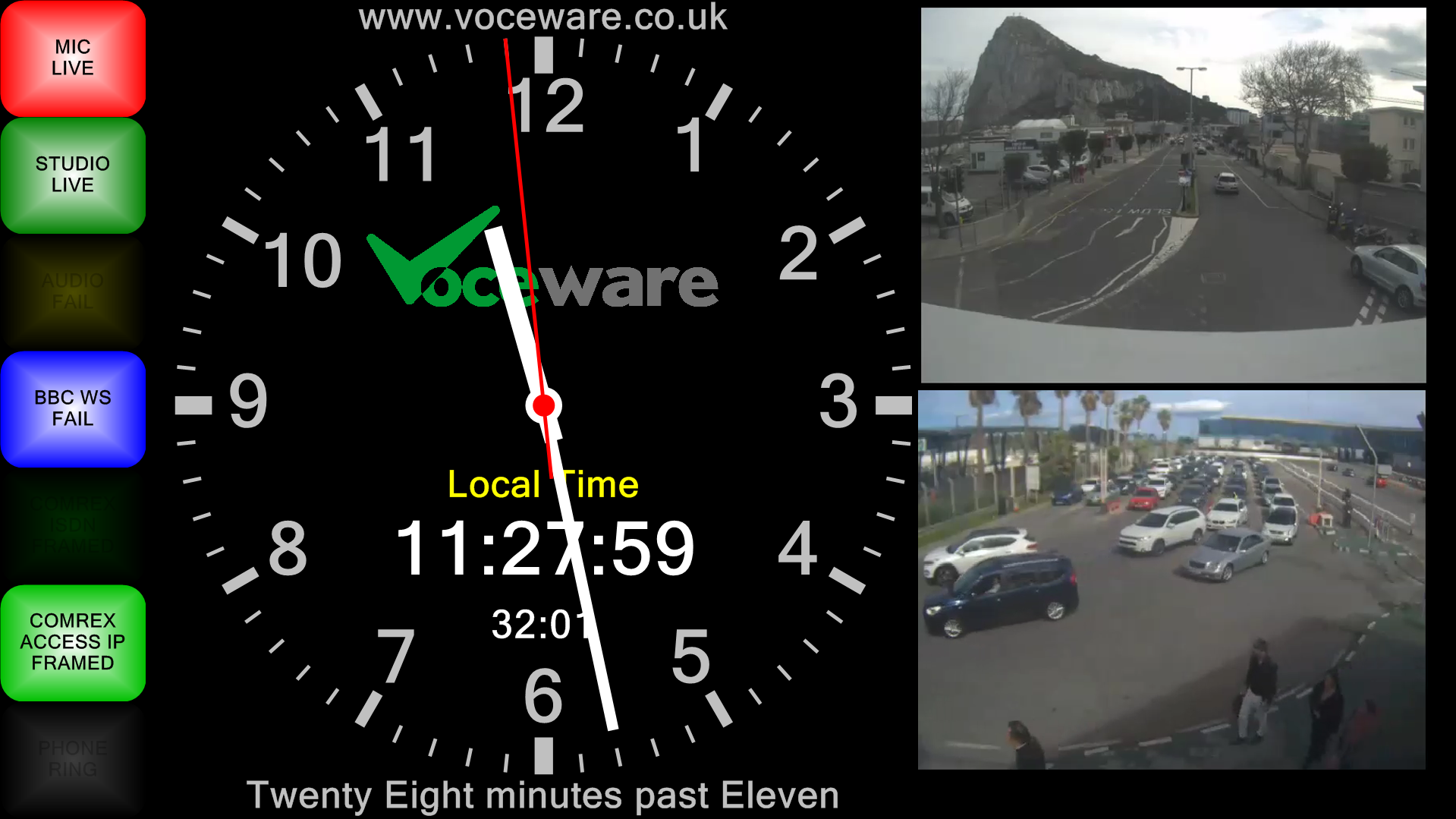

Embedded Web Browser

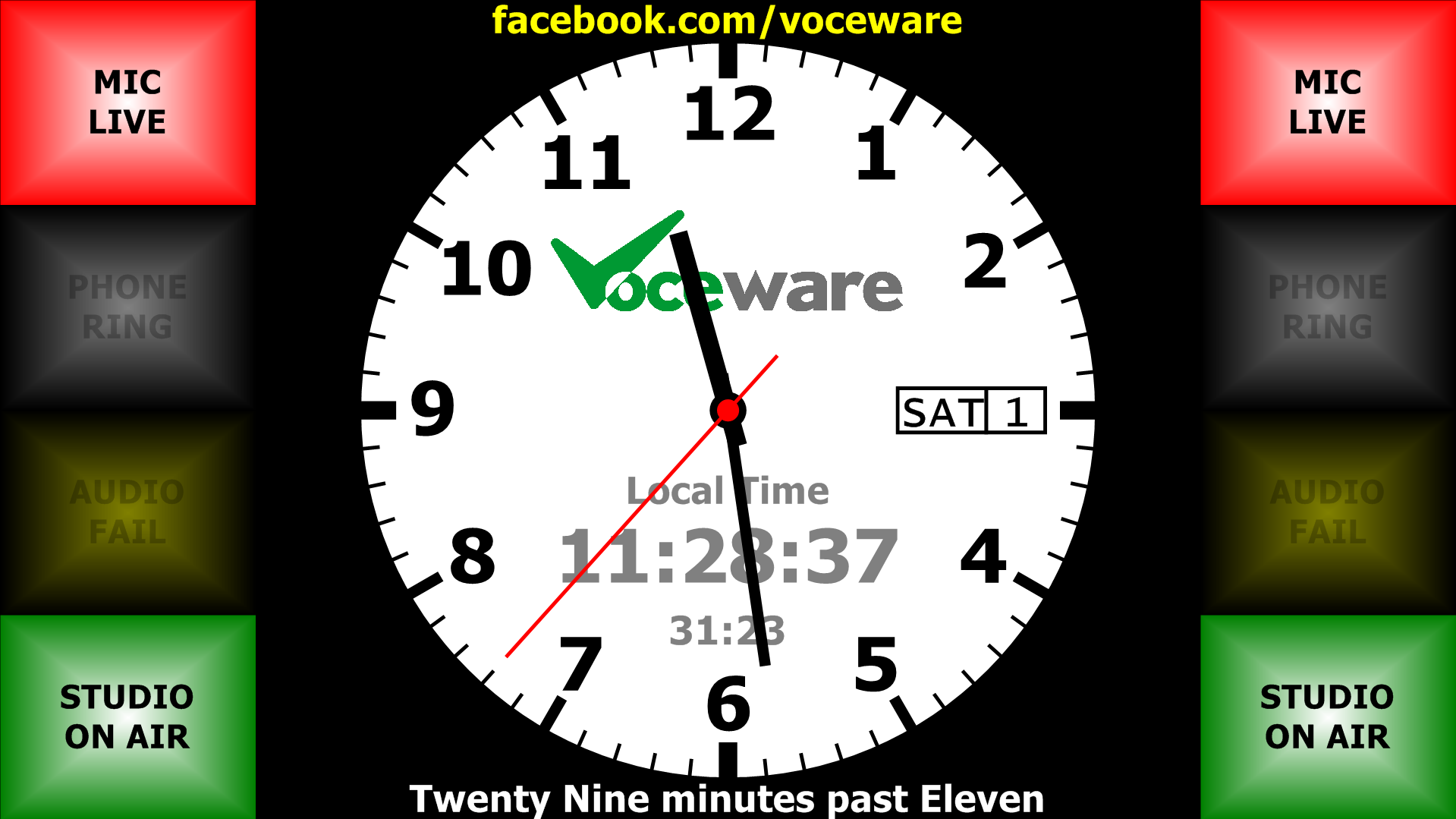

Day / Date Display

Lamps can be User Positioned

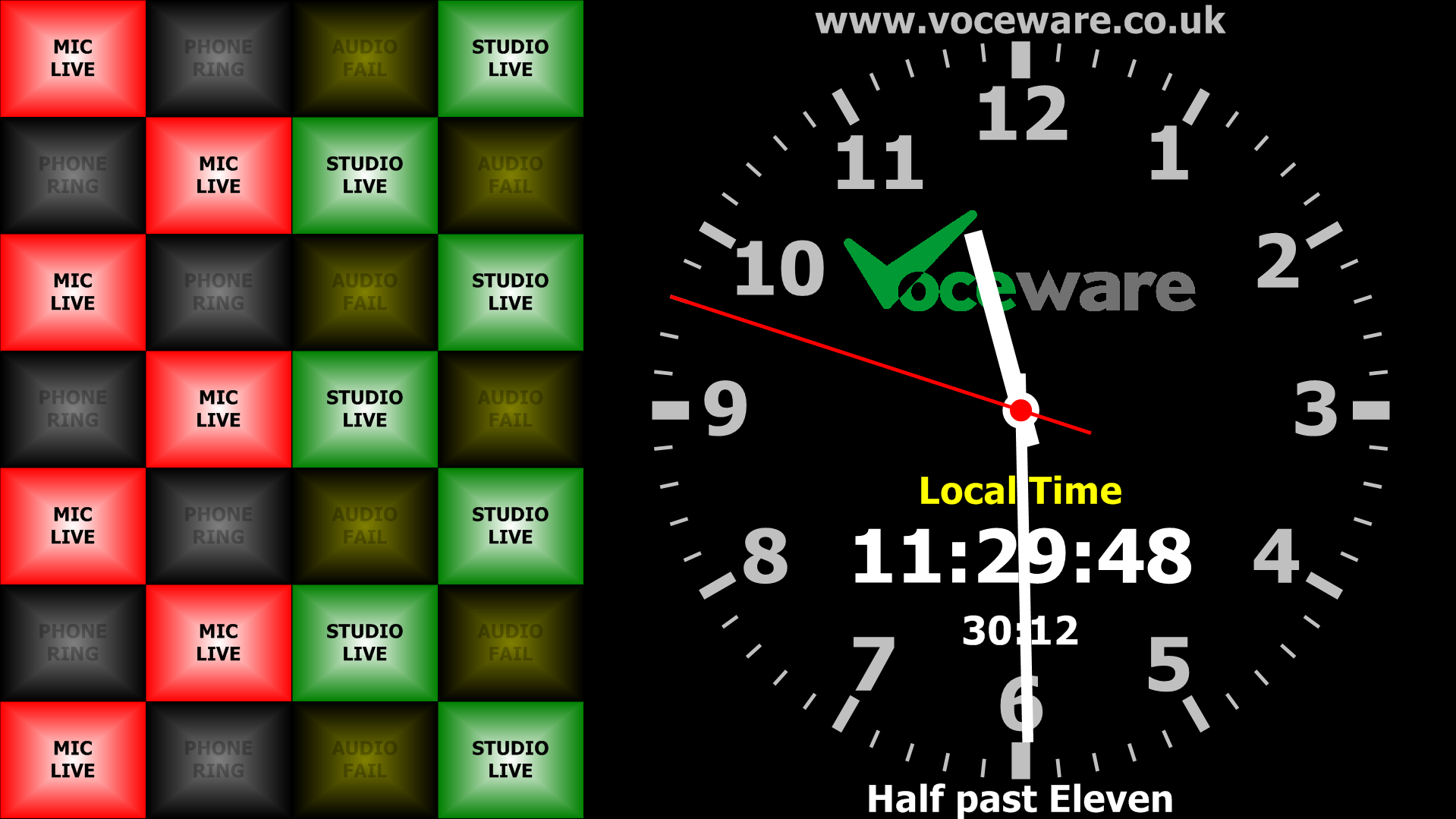

Up to 32 Lamps

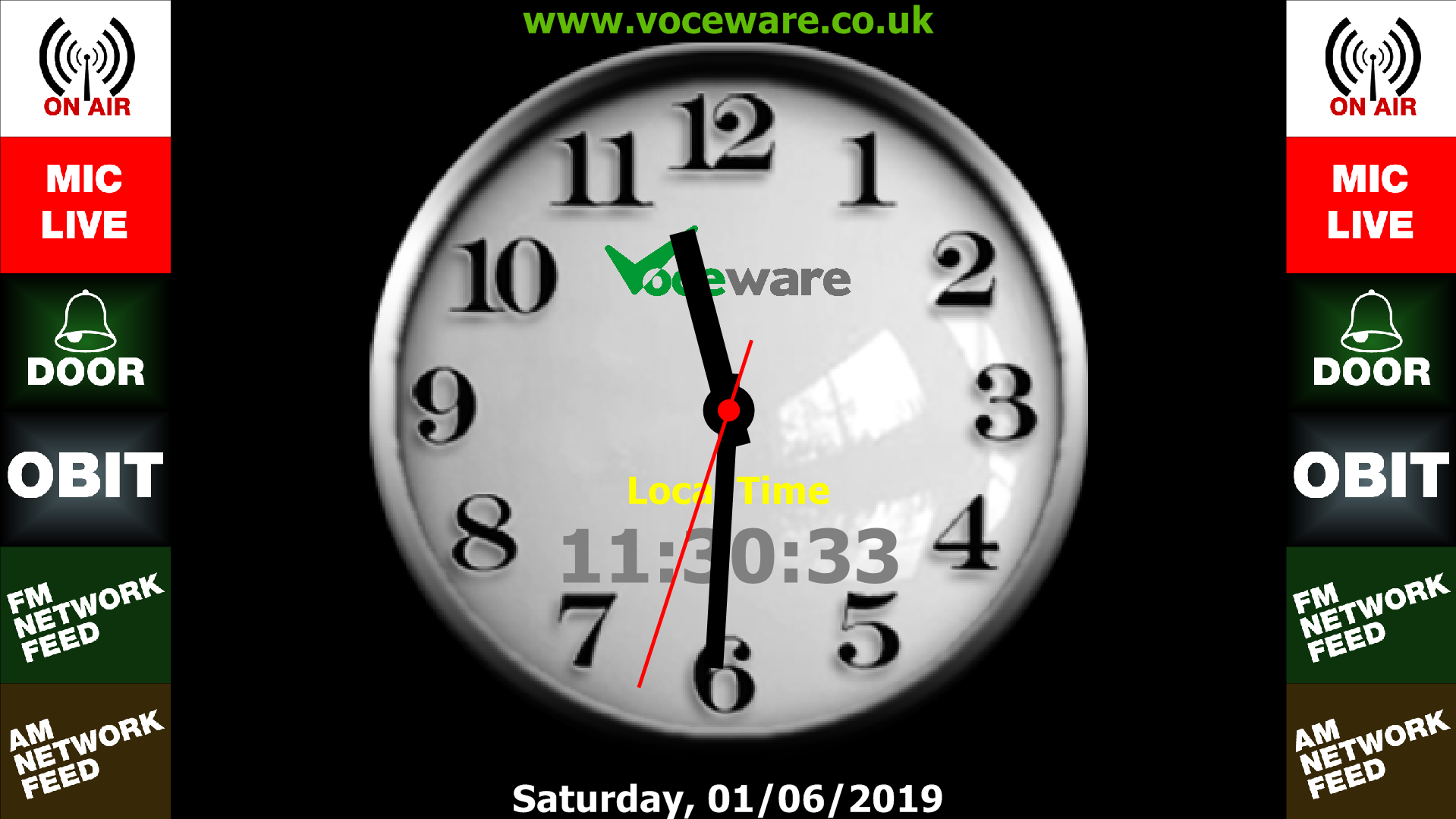

Use your own clock face image

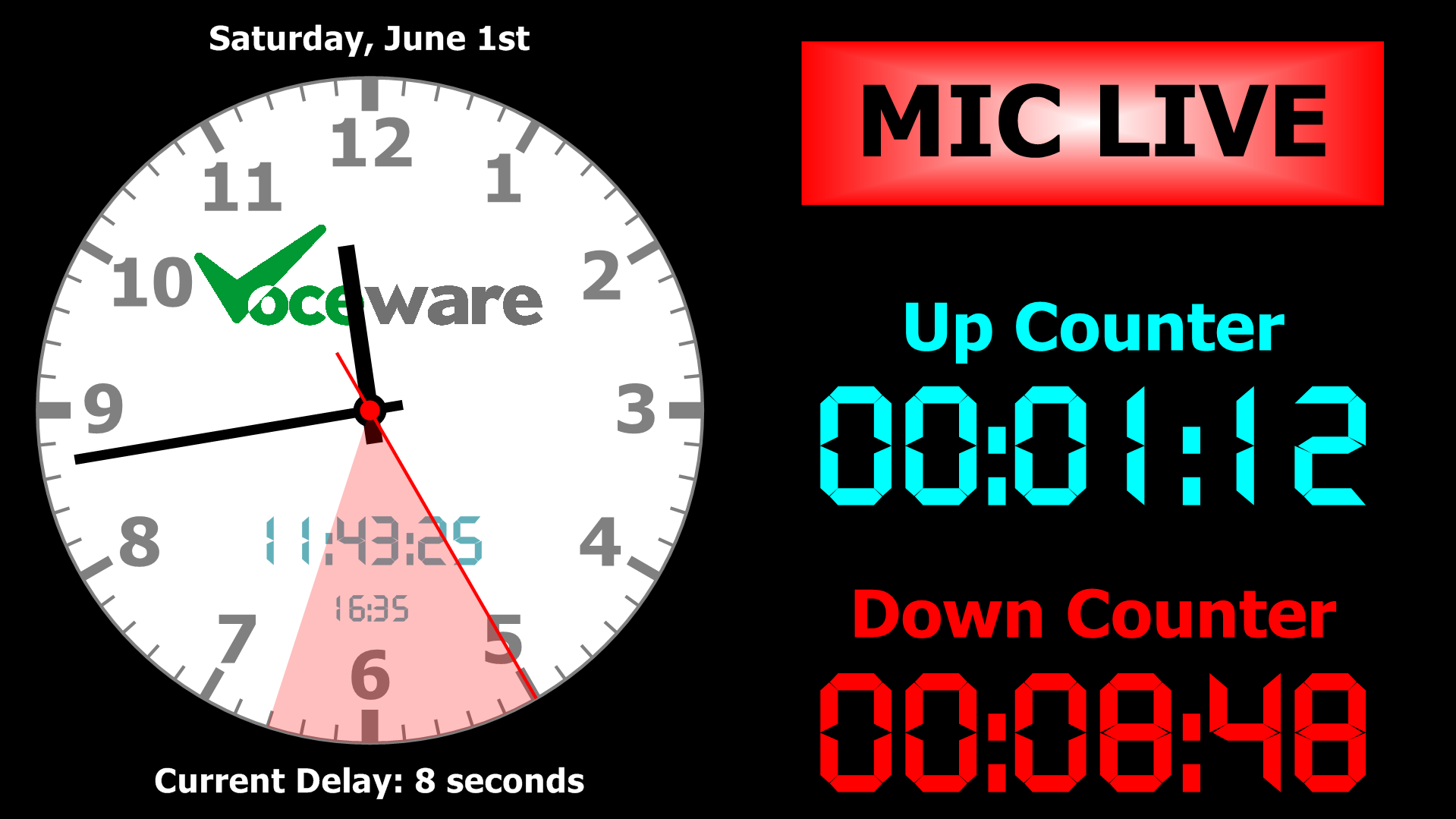

Up/Down Counters

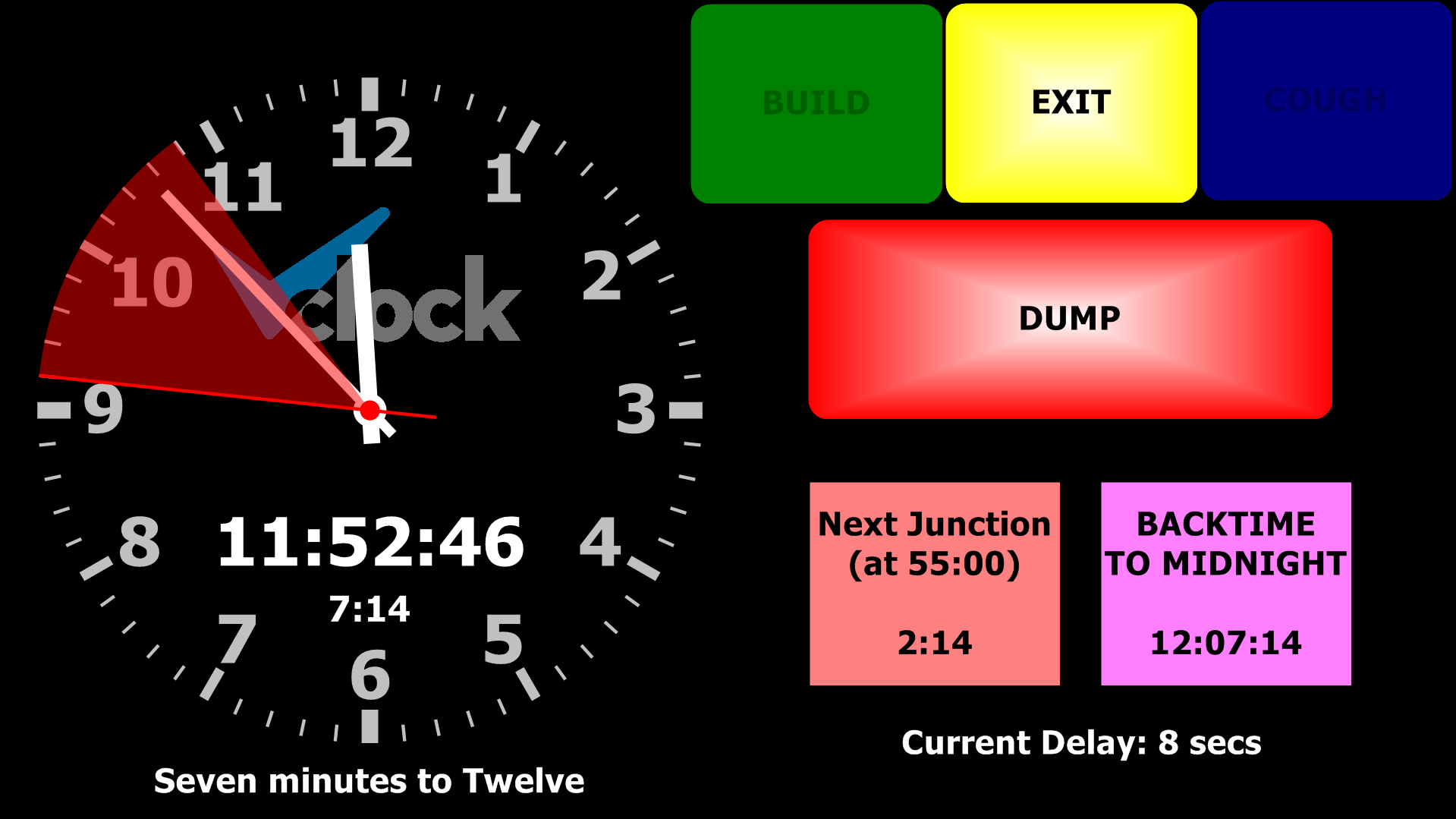

25-Seven PDM Control

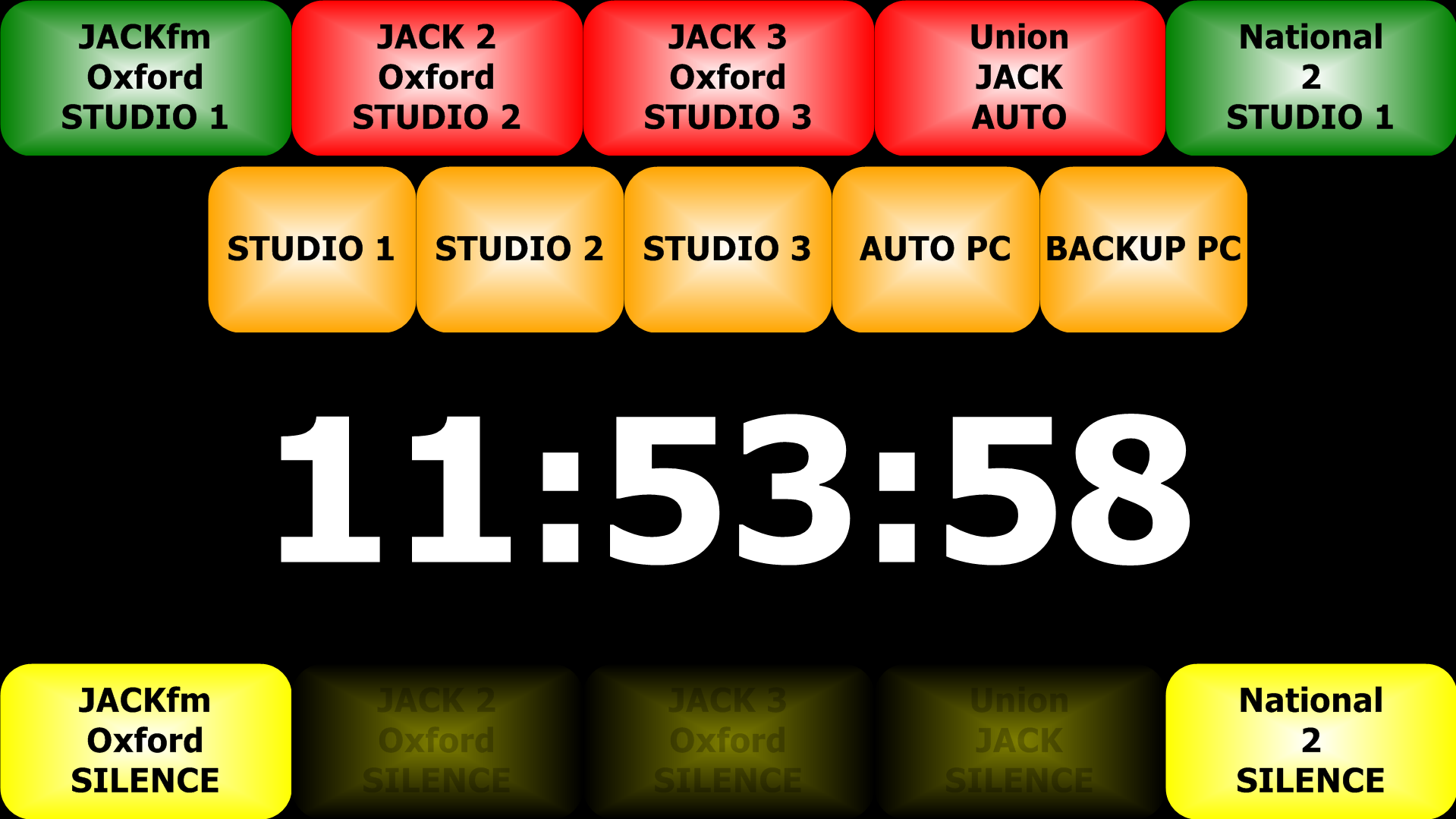

Transmitter / Source Switching

Our favourite hardware interfaces

VClock can interface with lots of equipment over the network, including Axia, DHD, Lawo and Wheatstone Consoles. All of these consoles can benefit from VClock controlling extra source selections or audio routing. But sometimes you need extra buttons, or to control non-IP enabled equipment. Here are our favourites:

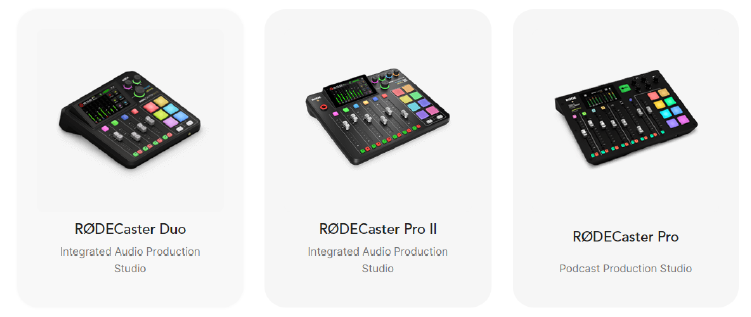

VClock can connect to RODECaster Duo / RODECaster Pro / RODECaster Pro II consoles over MIDI to create a Mic Live lamp, and convert button presses into physical outputs to drive external equipment.

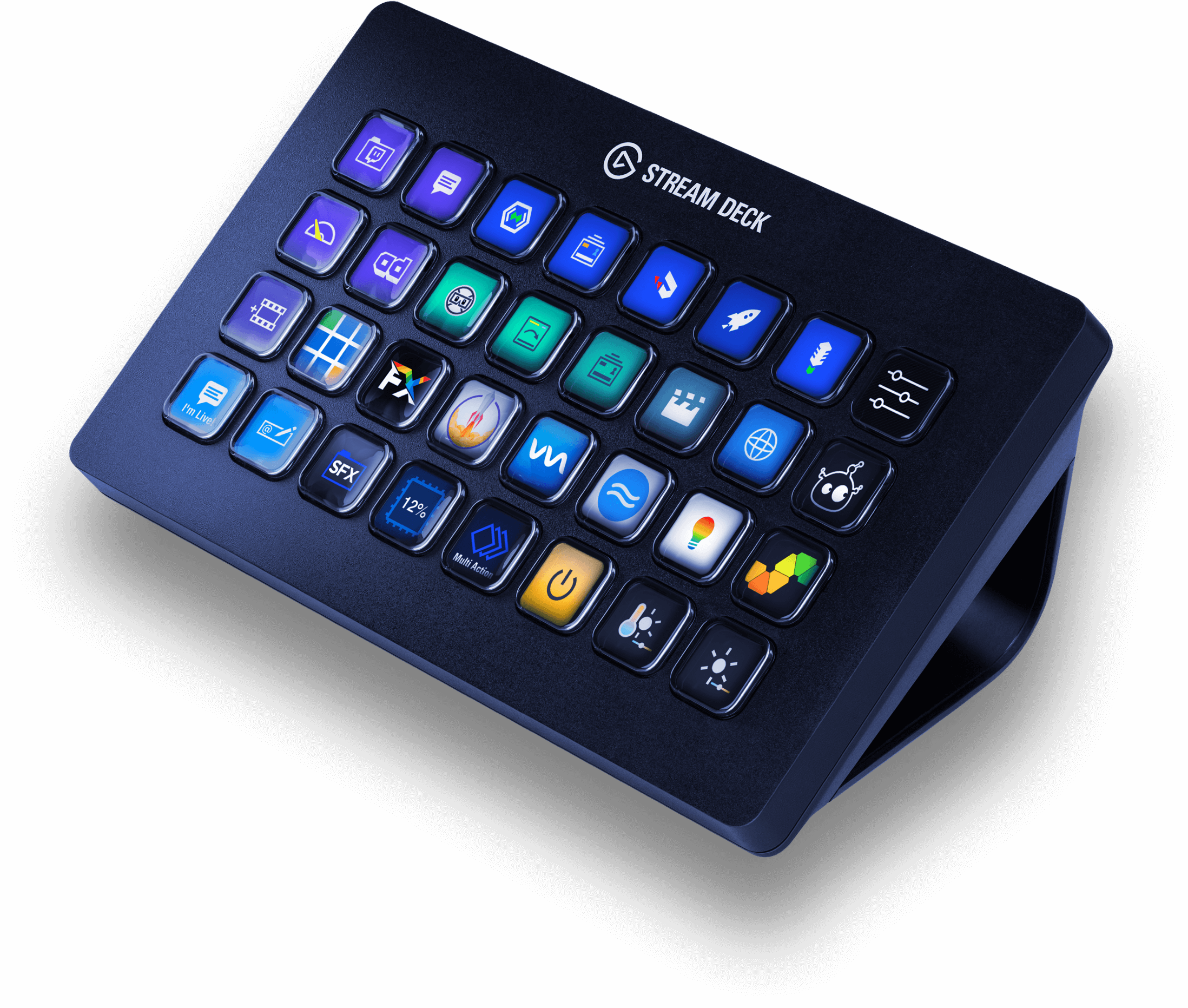

VClock can use 6, 15 or 32 button versions of the StreamDeck to extend the on-screen buttons to a hardware panel. These can be used to control a console's monitoring or audio routing, or VClock can convert them to physical closures for other equipment. The on-button displays are controlled in the same way as an on-screen lamp, so can be dynamically updated.

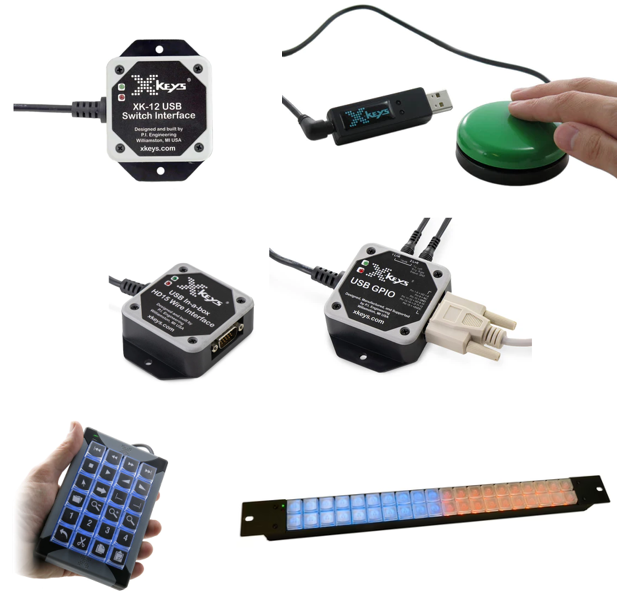

VClock can interface with many XKeys devices. They are by far the most cost effective way to get contact closures into VClock and also have various button panels that can be used with VClock. Shown in the picture are a 12 input and 3 input GPI device, an XK-24 hand-held device and an XKE-40 rackmount panel. VClock can take button presses to control audio routing or monitoring in IP consoles for example, and can control the button lamps.

Recently we have added support for the USB GPIO and HD15-Wire interfaces which add a sensibly-priced GPO Output solution for VClock as well as inputs (up to 12 outputs with the configurable USB GPIO device).

Contact us

If you are interested in larger quantities, or have any other questions, please contact us using the form below and we will respond by email or telephone as you prefer.

Name: Email: Phone:

Message:

To stop some annoying spammers, please tell us you are not a robot:

Purchasing

Please note that a licence is tied to a machine name and is not transferable. Once we receive payment, we will ask for the machine name to tie the licence to, and send you a licence file to save on the machine.

There are 3 levels of VClock licence. "Lite" displays only the clock face, no lamps. "Standard" also allows up to 32 lamps and the ability to control them via Salvos from incoming commands. "Plus" also allows VClock to send commands to other equipment (such as audio routers, xNodes, Advantech GPOs).

Pricing is £150 GBP (Lite), £225 GBP (Standard) and £340 GBP (Plus). There is a 20% discount for the 2nd and subsequent licences purchased at the same time and for the same product / licencing level. Running 2 clocks on the same machine requires 2 licences.

Fill in the Contact Form above with some brief details of quantities and company name, and we will be in touch to confirm prices and arrange an invoice for you.

Please be sure to download the free trial and ensure you are happy with the product before purchasing a licence. Licences are non-refundable.

If you would prefer to pay via PayPal, you can do this below. The discount for multiple purchases will be applied at checkout.

Quantity

Purchasing

      AVC are our representatives in Australia. Please contact them at www.avc-group.net or on 1 800 631 728 to discuss your requirements and any installation/configuration assistance you may require. See below for purchasing information.

Please note that a licence is tied to a machine name and is not transferable. Once we receive payment, we will ask for the machine name to tie the licence to, and send you a licence file to save on the machine.

There are 3 levels of VClock licence. "Lite" displays only the clock face, no lamps. "Standard" also allows up to 32 lamps and the ability to control them via Salvos from incoming commands. "Plus" also allows VClock to send commands to other equipment (such as audio routers, xNodes, Advantech GPOs).

Pricing is AU $330 (Lite), AU $475 (Standard) and AU $695 (Plus). There is a 20% discount for the 2nd and subsequent licences purchased at the same time and for the same product / licencing level. Running 2 clocks on the same machine requires 2 licences.

Fill in the Contact Form above with some brief details of quantities and company name, and we will be in touch to confirm prices and arrange an invoice for you.

Please be sure to download the free trial and ensure you are happy with the product before purchasing a licence. Licences are non-refundable.

If you would prefer to pay via PayPal, you can do this below. The discount for multiple purchases will be applied at checkout. We would prefer to issue you an invoice as above, in your local currency. PayPal prices are in UK Pounds Sterling.

Quantity

Purchasing

      AVC are our representatives in New Zealand. Please contact them at www.avc-group.net or on 0800 282 477 to discuss your requirements and any installation/configuration assistance you may require. See below for purchasing information.

Please note that a licence is tied to a machine name and is not transferable. Once we receive payment, we will ask for the machine name to tie the licence to, and send you a licence file to save on the machine.

There are 3 levels of VClock licence. "Lite" displays only the clock face, no lamps. "Standard" also allows up to 32 lamps and the ability to control them via Salvos from incoming commands. "Plus" also allows VClock to send commands to other equipment (such as audio routers, xNodes, Advantech GPOs).

Pricing is NZ $355 (Lite), NZ $510 (Standard) and NZ $750 (Plus). There is a 20% discount for the 2nd and subsequent licences purchased at the same time and for the same product / licencing level. Running 2 clocks on the same machine requires 2 licences.

Fill in the Contact Form above with some brief details of quantities and company name, and we will be in touch to confirm prices and arrange an invoice for you.

Please be sure to download the free trial and ensure you are happy with the product before purchasing a licence. Licences are non-refundable.

If you would prefer to pay via PayPal, you can do this below. The discount for multiple purchases will be applied at checkout. We would prefer to issue you an invoice as above, in your local currency. PayPal prices are in UK Pounds Sterling.

Quantity

Purchasing

      BGS are our representatives in America. Please contact them at www.bgs.cc or on (352) 622-7700 to discuss your needs and any installation or configuration assistance you may require. BGS also handle sales for your region.

Please note that a license is tied to a machine name and is not transferable. Once we receive payment, we will ask for the machine name to tie the license to, and send you a license file to save on the machine.

There are 3 levels of VClock license. "Lite" displays only the clock face, no lamps. "Standard" also allows up to 32 lamps and the ability to control them via Salvos from incoming commands. "Plus" also allows VClock to send commands to other equipment (such as audio routers, xNodes, Advantech GPOs).

Pricing is US $220 (Lite), US $320 (Standard) and US $470 (Plus). There is a 20% discount for the 2nd and subsequent licenses purchased at the same time and for the same product / licensing level. Running 2 clocks on the same machine requires 2 licenses. Please contact BGS to arrange the purchase.
